Common forces in mechanics is considered one of the most asked concept.
15 Questions around this concept.
An object resting on a table, is shown in the figure below. The mass of the object is 1 kg. Acceleration due to gravity is $9.8 \frac{\mathrm{~m}}{s^2}$. Determine the normal force (in N ) exerted on the object by the table.
Two objects resting on a table. Mass of object 1 (m1) = 1 kg, mass of object 2 (m2) = 2 kg, Acceleration due to gravity (g) =9.8 m/s2. Determine the magnitude and direction of the normal force (R1) exerted by m2 on the m1 and the normal force (R2) exerted by the table on the m2.
An Atwood machine has masses 5Kg and 15 Kg as shown. What is the acceleration (in m/s2) at 15 Kg mass when the system is released from rest
New: JEE Main 2025 Session 1 Result OUT; Check Now | Rank Predictor
JEE Main 2025: College Predictor | Marks vs Rank vs Percentile | Top NITs Cutoff
JEE Main 2025: January Session Official Question Paper for All Shifts | Exam Analysis
JEE Main 2025: High Scoring Topics | Sample Papers | Mock Tests | PYQs

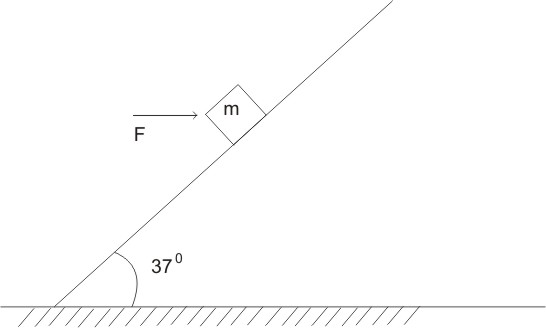

A body of mass 1 kg lies on a smooth inclined plane. A force F=10m is applied horizontally on the block as shown. The magnitude of normal reaction by the inclined plane on the block is
A massless rope is fixed at one end as shown in Fig. Two boys of masses 40 kg and 60 kg are moving along the rope. The former climbs up with an acceleration of $2 \mathrm{~m} / \mathrm{s}^2$ while later coming down with a constant velocity of $5 \mathrm{~m} / \mathrm{s}$. The tension (in N ) at fixed support will be ( $\mathrm{g}=10 \mathrm{~m} / \mathrm{s}^2$ )
A spring whose unstretched length is I has a force constant k. The spring is cut into two pieces of unstretched lengths $l_1$ and $l_2$ where $l_1=n l_2$ and n is an integer. The ratio $k_1 / k_2$ of the corresponding force constants, $k_1$ and $k_2$ will be:
A $\sqrt{34} \mathrm{~m}$ long ladder weighing 10 kg leans on a frictionless wall. Its feet rest on the floor 3 m away from the wall as shown in the figure. If $\mathrm{F}_{\mathrm{f}}$ and $\mathrm{F}_{\mathrm{w}}$ are the reaction forces of the floor and the wall, then ratio of $\mathrm{F}_{\mathrm{w}} / \mathrm{F}_{\mathrm{f}}$ will be:
$
\left(\text { Use } g=10 \mathrm{~m} / \mathrm{s}^2 .\right)
$
Recognized as Institute of Eminence by Govt. of India | NAAC ‘A++’ Grade | Upto 75% Scholarships
Ranked #42 among Engineering colleges in India by NIRF | Highest CTC 50 LPA , 100% Placements | Last Date to Apply: 25th Feb
A monkey of mass 50 kg climbs on a rope which can withstand the tension $(\mathrm{T})$ of 350 N . If monkey initially climbs down with an acceleration of $4 \mathrm{~m} / \mathrm{s}^2$ and then climbs up with an acceleration of $5 \mathrm{~m} / \mathrm{s}^2$. Choose the correct option $\left(\mathrm{g}=10 \mathrm{~m} / \mathrm{s}^2\right)$.
A steel block of 10 kg rests on a horizontal floor as shown. When three iron cylinders are placed on it as shown, the block and cylinders go down with an acceleration $0.2 \mathrm{~m} / \mathrm{s}^2$. The normal reaction $\mathrm{R}^{\prime}$ by the floor if the mass of the iron cylinders is equal and of 20 kg each, is $\qquad$ N. [Take $g=10 \mathrm{~m} / \mathrm{s}^2$ and $\mu_s=0.2$ ]
A block of mass M lies on smooth inclined plane. A force of 15 N is applied horizontally on the block as shown. The magnitude of normal by inclined plane on the block is , if the block is in equilibrium condition
Gravitational force (Weight):-
Definition- Force with which earth attracts an object.
It always acts towards the center of the earth
It is denoted by W=mg, where m=mass of the body and g= acceleration due to gravity.
2. Normal Reaction(N ):-
Definition- A contact force between two bodies in physical contact which acts perpendicular to common surface in contact.
Normal reaction is always a push force
Examples of Normal reaction acting on a block kept on horizontal surface and inclined plane is shown in figures below-
Examples of Normal reaction acting on a rod resting between ground and wall is shown in figures below-
3. Tension(T):-
Force exerted by taut string, rope or chain against pulling force along the length .
It acts away from the point of contact.
It is always a pull force
Tension remains the same as long as the string is the same only in case of a massless string.
4. Spring Force:-
Spring force is a type of restoring force which tries to come back to its natural length.
f = -Kx
where k is the spring constant and its unit is N/m and x is net elongation or compression in the spring.
Here -ve sign represents the restoring nature of the spring force.
